Guitar Tuner

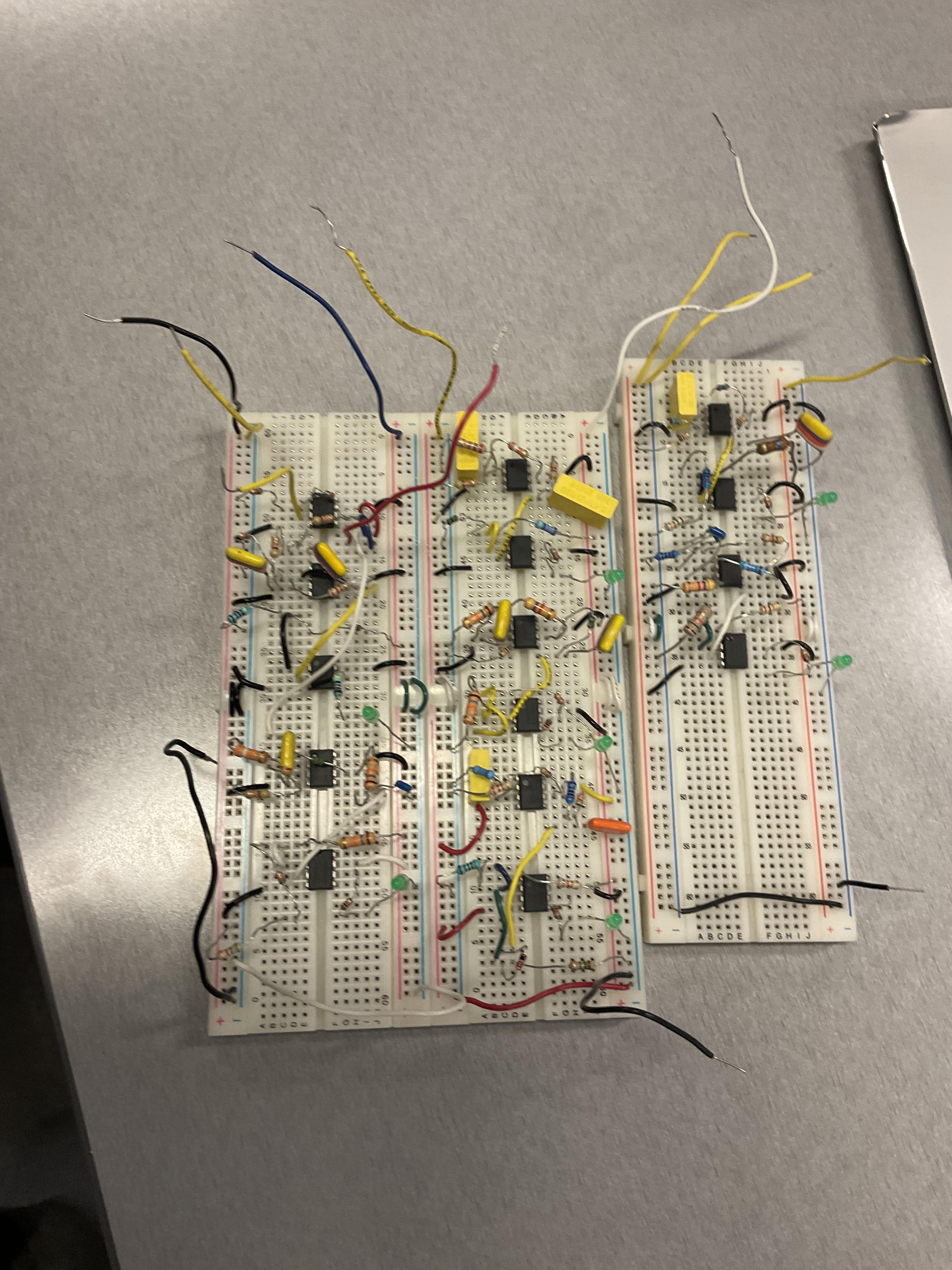

Overview
The project aims to design and build a guitar and vocal tuner. The tuner will help musicians accurately tune their instruments by identifying specific frequencies corresponding to different musical notes. The final device will be able to detect frequencies of guitar strings and vocal pitches, providing visual feedback through LEDs.
Components and Tools
- Op Amps (12 units)
- Resistors (Various values from 1kΩ to 200kΩ)
- Capacitors (Various values from 33nF to 100uF)
- Microphone
- LEDs
- Oscilloscope
- Comparator ICs
- Breadboard and connecting wires
Key Components and Concepts
Microphone and Pre-Amplifier
In the initial stages of the tuner's signal processing, the microphone serves as the primary input device, capturing the acoustic signals emitted by the guitar or a vocalist.
Filters
Within the tuner's circuitry, several types of filters play pivotal roles in signal processing. The low-pass filter serves to eliminate high-frequency noise, permitting only frequencies below a designated threshold to proceed through the circuitry for further analysis. Conversely, the high-pass filter allows frequencies surpassing a predetermined threshold to pass while effectively attenuating low-frequency noise from the signal.A band-pass filter isolates a targeted range of frequencies critical for identifying specific musical notes. E
Comparator
The comparator circuit within the tuner's design plays a crucial role in signal analysis and detection. It scrutinizes the filtered signal against a predetermined reference voltage, evaluating whether the input signal at pin 3 exceeds the reference voltage established at pin 2. In the event that the input signal surpasses the reference voltage, the comparator's output activates, signaling the presence of the desired frequency. This activation typically manifests through the illumination of an LED, providing a clear visual indication of frequency detection. The reference voltage itself is meticulously set using a voltage divider circuit, ensuring precise calibration and reliable comparison against incoming signals.
Design Process
The design process of the tuner involves several key steps to ensure its functionality and effectiveness. Initially, the microphone is employed to capture sound, with a coupling capacitor utilized to block DC components and ensure a clean signal.
Subsequently, the pre-amplifier circuit, configured with a gain of 2, enhances the signal strength for optimal processing. Filter design constitutes a critical phase, where low-pass and high-pass filters are meticulously crafted to isolate desired frequency ranges, while band-pass filters are specifically tuned to target frequencies associated with guitar strings and vocal notes.
Employing the Sallen-Key configuration for second-order filters ensures a sharper cutoff, enhancing performance. The comparator circuit serves as the next vital component, evaluating the filtered signal against a reference voltage. This reference voltage is established through a voltage divider circuit, facilitating precise comparison. Visual feedback is provided through LEDs, signaling frequency detection when the input matches the target frequency.
Component selection involves careful consideration, with resistors and capacitors chosen based on trial and error, alongside calculations to achieve desired filter characteristics. A comprehensive list of required components is compiled to ensure availability and compatibility. Testing and calibration are integral to the process, involving rigorous evaluation of the circuit's performance using tools like oscilloscopes and Bode plots. Adjustments to component values are made based on testing results to refine and optimize the tuner's performance further.
